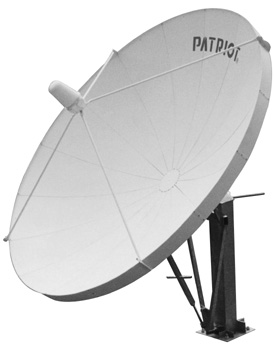

Спутниковая антенна Patriot 4.5 Meter C/Ku-Band прямофокусная система |
|---|
|
|
|
|
|
www.sepatriot.com | RF Specifications | C-Band | Ku-Band | | Frequency | 3.7-4.2 GHz | 10.95-12.75 GHz | | Rx Gain | 43.3 dBi | 52.6 dBi | | Rx 3 dB beamwidth | 1.3 | 0.5 | | Cross Polarization | >35 dB | >35 dB | | Beamwidth | 1.3° | .5° | | VSWR | 1.3:1 | 1.3:1 | | Antenna Noise @ 30°EL | 25 K | 25 K | | Typical G/T (Midband) | | | | with 50 K LNA | 24.4 dB/K | --- | | with 70 K LNA | --- | 32.8 dB/K | | Feed Interface | CPR229 | WR75 | | Mechanical Specifications | Az-El Head | Kingpost | | F/D Ratio | .35 | .35 | | Focal Distance | 62.0 in / 157.5 cm | 62.0 in / 157.5 cm | | Azimuth Travel | 360° Continuous | 132° Arc (Fixed)
116° Motorized | | Elevation Travel | 0° to 90° | 0° to 90° | | Polarization Travel | ±90° | ±90° | | Mast Pipe Size | 6.625" O.D. | --- | | Total Weight | 964 lbs | see below right | | Crate Dimensions | 11x46x42 in | see below right | | Units per 40 ft Container | 16 units | 10 units | | Environmental Specifications | | | Wind Load | Operational | 60 mph | | | Survival | 125 mph | | Temperature | Operational | -40° to 140°F
-40° to 60°C | | | Survival | -60° to 180°F
-51° to 82°C | | Radial Ice | Survival | 1 in or
1/2 in + 60mph | | Shock & Vibration | As occurred during on shipment of air, truck or rail. |
 |
Foundation Specs | Ax-El Fixed
PRT-450AZPL | Fixed Az-El Kingpost
PRT-450AZKP | Dual Axis Motorized Kingpost
PRT-450DAKP |
|
|
|
|
